PIR Sandwich Panels

Izhar Foster is the largest manufacturer of PIR Panels and PU Insulated panels in Pakistan.

PIR Panels / Sandwich Panels Manufactures

Being a leader and an innovator Izhar Steel (Pvt) Ltd. is the only company in Pakistan providing design, manufacturing, installation and servicing of Ozone friendly & PIR sandwich panels for various industries.

PIR Sandwich Panels by Izhar Steel is a revolutionary development in Pakistan and is transforming the steel construction standards to next level.

PIR Sandwich Panels are widely recognized by investors, property insurers, designers and contractors for its unmatched advantages. By discontinuing the production of PU panel and switching to Ozone friendly technologies, Izhar Steel is contributing towards saving the Ozone layer and also helping in elimination of one of the causes of cancer.

Fire resistant properties along with high insulation values offers a world of benefits compared with traditional PU panels. PIR sandwich panels by Izhar delivers outstanding all-around performance, environmental sustainability, fire safety, structural & thermal performance.

Sandwich Panels

PIR Sandwich Panels
PIR Sandwich Panels in Pakistan

Applications of PIR Sandwich Panels:

  • All kinds of pre-fabricated steel buildings
  • Cold Stores
  • Food processing plants
  • Warehouses
  • Refrigerated and non-refrigerated vehicles
  • Partition walls
  • Fire-resistant rooms
  • Agricultural project storage halls
  • Fire chemical processing facilities
  • Packing and distribution centers
  • Exhibitions and shopping malls
  • Sports and fitness complexes
  • Stadiums
  • Prefabricated class rooms and office

Why PIR Sandwich Panels:

Insulating effect of FirSafe PIR Sandwich Panels is 49 times greater than concrete and 42 times greater than brick. If compared with typical construction materials, it helps to save 30% on energy and maintenance costs for heating and air-conditioning system.

PIR Panels are non hygroscopic. It does not absorb moisture, which enables waterproofing/moisture proofing. Strong assembly process prevents any water leakage issues at joints.

It is  light but strong independent structure and is easy to construct.

141B gas is used as blowing agent in manufacturing of traditional PU panels. United Nations declared 141B as one of the major reason for fracturing the Ozone Layer around earth. 141B gas injected in PU panels is also causing cancer. Izhar is the only company in Pakistan which discontinued the manufacturing of PU panels and switched to PIR Sandwich Panels using eco-friendly pentane gas

Since panels are flame retardant and fire proof, no flame spread take place within the panel core. PIR Panels / Sandwich Panels buildings are safer as compare to PU panels and other construction material.

With 50 ft. range panels length, core thickness up to 250 mm and color options to choose from, allows complete freedom at design stage for attractive appearance.

FieSafe PIR Sandwich Panels by Izhar are built for self assembly, thus decreasing the time and cost of construction.

  • Thermal conductivity is stable during life time.
  • No deformation in winter.
  • Acoustically compliant.
  • It is  light but strong independent structure and is easy to construct.
Firesafe PIR Sandwich Panels

PIR Thermal Board

Izhar Thermal Board is manufactured at Izhar Steel’s PIR Panels factory in Lahore, Pakistan. It is a high compressive strength insulation board that is used in overlaying flat roofs waterproofed with single-ply.

Technical Specifications:

  • Less Smoke intensityCompressive strength exceeding
    300 kPa@ 10% compression
  • Density 60kg/m3
  • Thermal conductivity as low as 0.028 W/m∙K
  • Resistant to the passage of water vapor
  • Non–deleterious material
  • Manufactured with ozone friendly cyclopentane blowing agent that has zero ODP (contains no CFCs and HCFCs) and GWP
  • Does not contain Asbestos-Dimensional stability <1 %
PIR Thermal Board
Firesafe PIR Panels in Lahore

Fire Safety

Izhar Steel’s PIR Sandwich Panels have outstanding fire protection qualities. Entire industry is switching from PUR to PIR Sandwich Panels. The major objective of fire safety design of a building is to to minimize the consequences of a fire. It is matter of great significance for property owners and insurance companies that  whether the building components contribute to the fire event or whether they prevent flashovers and are self-extinguishing. Therefore it is important that wall and ceilings are fire safe and do not spread fire, spit out burning droplets and produce excessive smoke. Izhar’s PIR panels protect the basic structure and maintain the heat resistance properties for longer period of time which helps evacuation of the building. PIR panels also limit the damage to property.

Following fire behaviors of PIR Sandwich Panels are the reasons for the great success of PIR Sandwich Panels in Industry.

  • Less Smoke intensity
  • Fire penetration
  • Flame spread
  • No flashovers or fire expansion to the outside edges/transitions of a building component
  • Contribution to the fire event

Fire Values of Izhar PIR Sandwich Panels

  • Flammability Category: B2 PIR foam which makes these panels B1 category.
  • Panels are manufactured in compliance with ASTM E84(same as TSSC)
Firesafe Panels

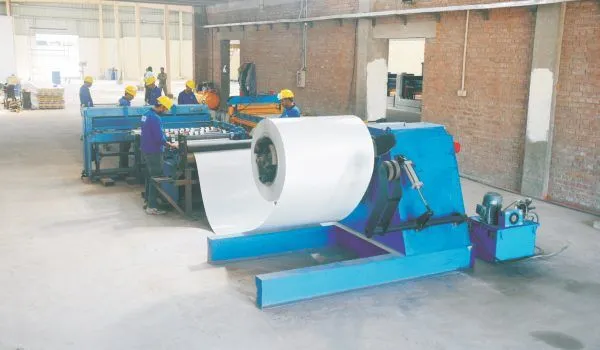

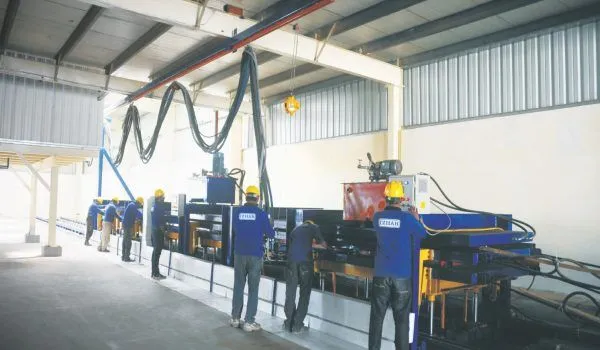

Largest PIR production facility in the Continent

Production of 50 feet long PIR Sandwich Panel using innovative “Ozone friendly technologies” at the largest PIR panel manufacturing facility in Pakistan.

PIR Sandwich Panels by Izhar Steel is a revolutionary development in Pakistan and is transforming the steel construction standards to next level. PIR Panels are widely recognized by investors, property insurers, designers and contractors for its unmatched advantages.

PIR Sandwich Panels by Izhar delivers outstanding all-around performance, environmental sustainability, fire safety, structural & thermal performance.

Izhar Steel is capable of meeting international standards and operating globally.

Roof Panels

The Izhar roof panels are designed for use as roofs for various buildings. Fastening to the supporting structure is carried out with use of self-drilling screws.

  • Profiled lining with a unique surface design.
  • Large lining bend radius guarantees durability of the protective coating.
  • Seamless polyurethane seal, applied in manufacture, guarantees joint tightness.
  • Capillary action preventing chamber.
  • Core made of stiff, CFC free, self-extinguishing PIR foam with very good thermal insulation properties.
  • Profiled edges guarantee tightness of joint.
Sandwich Panels
Wall Panels

Wall Panels

The Wall Panels panels are designed for use on external walls, suspended ceilings and internal walls. They may be installed vertically or horizontally. Fastening to the supporting structure is carried out with use of self-drilling screws.

Complicated tongue and groove design of PIR sandwich panels comes with following advantages:

  • Large bend radius in panels guarantee durability of lining protective coatings.
  • Double panel lock guarantees best fire resistance properties.
  • Profiled edges facilitate assembly and ensure proper thermal insulating power.
  • Core made of stiff, CFC free, self-extinguishing PIR foam with very good thermal insulation properties.
  • Seamless polyurethane seal keeps proper thermal insulating power and tightness of joint – applied in manufacture.
PIR-Sandwich-Panels-PU-Insulated-Sandwich-Panels

PIR Sandwich Panels & PU Insulated Sandwich Panels by Izhar Steel is a revolutionary development in Pakistan. We also a Vaccine cold store manufacturers in Pakistan

To know about the PIR Sandwich Panels Prices, get in touch with us.

PIR Panels / Sandwich Panels FAQ’s

Q: Are PIR sandwich panels waterproof?

Ans: Yes. PIR Sandwich panels from Izhar Foster are completely waterproof and moisture-proof. This makes these panels perfectly applicable for all wall insulation requirements. Our PIR sandwich panels are made to last long wherever you use them.

Q: Are PIR sandwich panels Fire safe?

Ans: Yes. Izhar Foster manufactures fire-resistant PIR sandwich panels that have high fire safety. In the case of PIR, the breakdown of the chemical chains takes place at a temperature of 300°C. The materials we use are far more advanced than traditional PU panels.

This means that in the event of a fire, PIR plates give the user more time to react and fight fire than any other sandwich panels, and in extreme cases – to evacuate.

Q: Are PIR sandwich panels insulated?

Ans: Yes. Our PIR Sandwich panels have great thermal insulating properties. We use advanced materials that are both durable and very highly insulating. This makes our PIR panels perfect for use in different parts of Pakistan.

Q: How long do PIR sandwich panels last?

Ans: Durability is one of the strong points of Izhar Foster’s PIR sandwich panels. Our panels are made to last for up to 50 plus years without needing replacement. The high-grade materials provide great insulation properties for more than 2 decades.

Q: Is it recommended to install PIR sandwich panels for industrial buildings?

Ans: Yes. In fact, all industrial buildings should get PIR sandwich panels for maximum insulation and structural support. Our sandwich panels increase the thermal insulation by reducing temperature maintenance costs inside industrial buildings.

Q: Can I use PIR sandwich panels at my home for insulation?

Ans: Yes. High-quality PIR sandwich panels provide high levels of temperature insulation for houses and residential buildings. This reduced energy costs. For modern houses that focus on solar energy, PIR sandwich panels can make your property much more energy-efficient.

Q: How much will it cost for full property PIR sandwich panel installation?

Ans: Prices and costs will vary for different properties. Contributing factors are the size of the property, location, local weather conditions, and more. Please call Izhar Foster today to get an estimate for the total cost of your PIR panel project costing.

Q: My house is already built; can I get PIR sandwich panels installed?

Ans: Yes. It is recommended to get PIR sandwich panels installed during the construction of your property. However, these panels can also be installed in finished properties. Keep in mind that there will be some work required to install PIR sandwich panels in fully finished properties.

Q: Is delivery available for PIR sandwich panels at my location?

Ans: Yes. Izhar Foster provides delivery all over Pakistan for our high-quality PIR sandwich panels. Place your order with us and schedule delivery for any day of the week. We can deliver to all cities, towns, and locations across the country.

Q: What does PIR stands for?

Ans: PIR sandwich panel, also known as Polyisocyanate sandwich panel, it is a foaming material made by reaction of Isocyanate with polyether after the catalyst.

Q: What is difference between PU panel and PIR Panel?

Ans: PIR panel and PU panel are completely different insulation materials. PIR Panel by far have better insulation properties than of PU panels.

Below is comparison;

DESCRIPTION PIR PANEL PU PANEL
Fire Resistance



B1 – B2



B3

R- Value



2.38 m2 K/W



2.25 m2 K/W

Thermal Conductivity

Thermal conductivity can be as low as 0.018 W/mK

(25 degrees Celsius).

Thermal conductivity is generally 0.022 to 0.026 W/mK

(25 degrees Celsius).

Density 42 – 55kg/m3 30- 45kg/m3
Compressive Strength 0.294 MPA 0.265 MPA
Water Absorption Rate 0.90 % 2.5 – 3 %
Flame Retardancy Flame retardant Self-Extinguishing
Temperature Range Can reach 205 ˚C Degree Celsius Below 110 ˚C Degree Celsius
